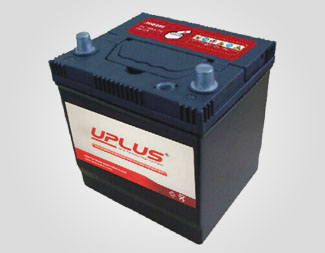

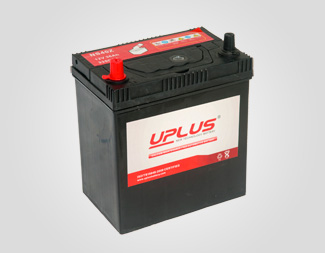

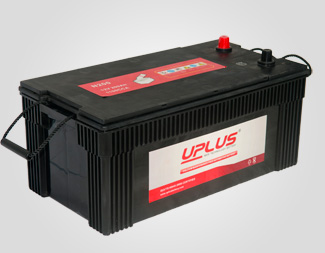

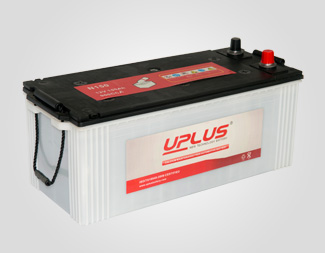

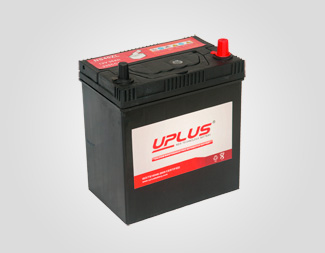

UPLUS JIS series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under JIS technology standard,less electrolyte is consumed,good anti-vibration capacity.It’s good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

Category: Tag: Brand:

Description

Group
No.		 Old
Type		 Type Volt. C20 C5 RC CCA(JIS) Overall Dimensions(mm) Cell Terminal Hold
Down		 Handles Wet
Weight
(V) (Ah) (Ah) (Min) (-18℃) L W H TH Layout (Kg)
E41 N100L 95E41L 12 100 80 179 750 409 170 209 233 0 1 B0 TS8 26.3
N100 95E41R 12 100 80 179 750 409 170 209 233 1 1 B0 TS8 26.3
N100ZL 105E41L 12 105 83 190 780 409 170 209 233 0 1 B0 TS8 27
N100Z 105E41R 12 105 83 190 780 409 170 209 233 1 1 B0 TS8 27
N100ZL 115E41L 12 110 88 201 820 409 170 209 233 0 1 B0 TS8 27.5
N100Z 115E41R 12 110 88 201 820 409 170 209 233 1 1 B0 TS8 27.5
NX200-10L 130E41L 12 116 92 215 850 409 170 209 233 0 1 B0 TS8 28.2
NX200-10 130E41R 12 116 92 215 850 409 170 209 233 1 1 B0 TS8 28.2
F51 N120 115F51 12 120 96 223 800 504 180 208 232 4 1 B0 TS8 33.4
N120R 115F51R 12 120 96 223 800 504 180 208 232 3 1 B0 TS8 33.4
NS150 145F51 12 135 112 256 850 504 180 208 232 4 1 B0 TS8 34.9
NS150R 145F51R 12 135 112 256 850 504 180 208 232 3 1 B0 TS8 34.9
G51 N150 145G51 12 150 120 290 900 507 219 212 234 4 1 B0 TS8 39.5
NS200 165G51 12 165 136 324 1000 507 219 212 234 4 1 B0 TS8 41.8
H52 N200 190H52 12 200 160 407 1100 515 265 216 240 4 1 B0 TS8 51.3
N200R 190H52R 12 200 160 407 1100 515 265 216 240 3 1 B0 TS8 51.3
N220R 245H52R 12 220 176 456 1200 515 265 216 254 4 4 B0 TS8 53.6
Group
No.		 Old
Type		 Type Volt. C20 C5 RC CCA(JIS) Overall Dimensions(mm) Cell Terminal Hold
Down		 Handles Wet
Weight
(V) (Ah) (Ah) (Min) (-18℃) L W H TH Layout (Kg)
B20 NS40L 36B20L 12 32 28 47 310 195 126 201 221 0 3 B0 TS1 9.4
NS40 36B20R 12 32 28 47 310 195 126 201 221 1 3 B0 TS1 9.4
NS40L(S) 36B20LS 12 32 28 47 310 195 126 201 221 0 1 B0 TS1 9.4
NS40(S) 36B20RS 12 32 28 47 310 195 126 201 221 1 1 B0 TS1 9.4
NS40ZL 38B20L 12 36 28 54 335 195 126 201 221 0 3 B0 TS1 9.7
NS40Z 38B20R 12 36 28 54 335 195 126 201 221 1 3 B0 TS1 9.7
NS40ZL(S) 38B20LS 12 36 28 54 335 195 126 201 221 0 1 B0 TS1 9.7
NS40Z(S) 38B20RS 12 36 28 54 335 195 126 201 221 1 1 B0 TS1 9.7
B24 N40L 32B24L 12 40 32 61 350 237 128 200 222 0 3 B0 TS1 11.5
N40 32B24R 12 40 32 61 350 237 128 200 222 1 3 B0 TS1 11.5
N40L(S) 32B24LS 12 40 32 61 400 237 128 200 222 0 1 B0 TS1 11.5
N40(S) 32B24RS 12 40 32 61 400 237 128 200 222 1 1 B0 TS1 11.5
NS60L 46B24L 12 45 36 70 350 237 128 200 222 0 3 B0 TS1 12.1
NS60 46B24R 12 45 36 70 350 237 128 200 222 1 3 B0 TS1 12.1
NS60L(S) 46B24LS 12 45 36 70 450 237 128 200 222 0 1 B0 TS1 12.1
NS60(S) 46B24RS 12 45 36 70 450 237 128 200 222 1 1 B0 TS1 12.1
NX100-S6L 55B24L 12 48 36 75 350 237 128 200 222 0 3 B0 TS1 12.4
NX100-S6 55B24R 12 48 36 75 350 237 128 200 222 1 3 B0 TS1 12.4
NX100-S6L(S) 55B24LS 12 48 36 75 500 237 128 200 222 0 1 B0 TS1 12.4
NX100-S6(S) 55B24RS 12 48 36 75 500 237 128 200 222 1 1 B0 TS1 12.4
D20 50D20L 12 50 40 79 450 200 171 198 219 0 1 B0 TS1 13.2
50D20R 12 50 40 79 450 200 171 198 219 1 1 B0 TS1 13.2
Group
No.		 Old
Type		 Type Volt. C20 C5 RC CCA(JIS) Overall Dimensions(mm) Cell Terminal Hold
Down		 Handles Wet
Weight
(V) (Ah) (Ah) (Min) (-18℃) L W H TH Layout (Kg)
D23 55D23L 12 60 48 98 550 230 170 199 219 0 1 B0 TS1 15.5
55D23R 12 60 48 98 550 230 170 199 219 1 1 B0 TS1 15.5
75D23L 12 63 52 105 600 230 170 199 219 0 1 B0 TS1 16.2
75D23R 12 63 52 105 600 230 170 199 219 1 1 B0 TS1 16.2
D26 N50L 48D26L 12 50 40 79 430 256 170 203 225 0 1 B0 TS7 15.1
N50 48D26R 12 50 40 79 430 256 170 203 225 1 1 B0 TS7 15.1
N50ZL 55D26L 12 60 48 98 530 256 170 203 225 0 1 B0 TS7 16.3
N50Z 55D26R 12 60 48 98 530 256 170 203 225 1 1 B0 TS7 16.3
NS70 65D26R 12 65 52 108 570 256 170 203 225 1 1 B0 TS7 17
NS70L 75D26L 12 65 52 108 570 256 170 203 225 0 1 B0 TS7 17
NS70 75D26R 12 65 52 108 570 256 170 203 225 1 1 B0 TS7 17
NX110-5L 80D26L 12 70 55 118 620 256 170 203 225 0 1 B0 TS7 17.5
NX110-5 80D26R 12 70 55 118 620 256 170 203 225 1 1 B0 TS7 17.5
D31 N70L 65D31L 12 70 56 118 580 303 170 201 222 0 1 B1 TS1 19.3
N70 65D31R 12 70 56 118 580 303 170 201 222 1 1 B1 TS1 19.3
N70ZL 75D31L 12 75 60 128 620 303 170 201 222 0 1 B1 TS1 20
N70Z 75D31R 12 75 60 128 620 303 170 201 222 1 1 B1 TS1 20
NX120-7L 95D31L 12 80 64 138 660 303 170 201 222 0 1 B1 TS1 20.4
NX120-7 95D31R 12 80 64 138 660 303 170 201 222 1 1 B1 TS1 20.4
105D31L 12 83 64 145 700 303 170 201 222 0 1 B1 TS1 21.1
105D31R 12 83 64 145 700 303 170 201 222 1 1 B1 TS1 21.1
